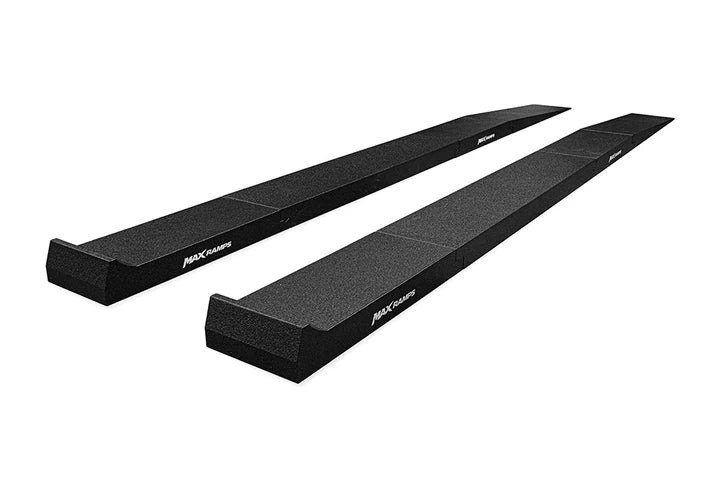

MAXRAMPS 4" FULL VEHICLE LIFT RAMPS are an ultra-low-profile, multi-piece ramp system designed to raise an entire low-clearance vehicle 4 inches so the body can clear scissor lifts, mid-rise lifts, and two-post lift arms. With an exceptionally shallow 4-degree approach, compatibility with 80–115-inch wheelbases, and a 7,000-lb overall vehicle capacity, the system is built for shops and garages that regularly work with lowered, exotic, or performance vehicles.

Key Features & Benefits

🔹 Ultra-Low 4° Approach – Designed for vehicles that cannot safely clear conventional service or lift-access ramps.

🔹 Raises the Entire Vehicle 4" – Creates clearance for scissor lifts, mid-rise lifts, and two-post lift arms.

🔹 Adjustable for 80–115" Wheelbases – Multi-piece layout accommodates a wide range of sports and performance cars.

🔹 7,000-lb Overall Capacity – Suitable for substantial professional and enthusiast applications.

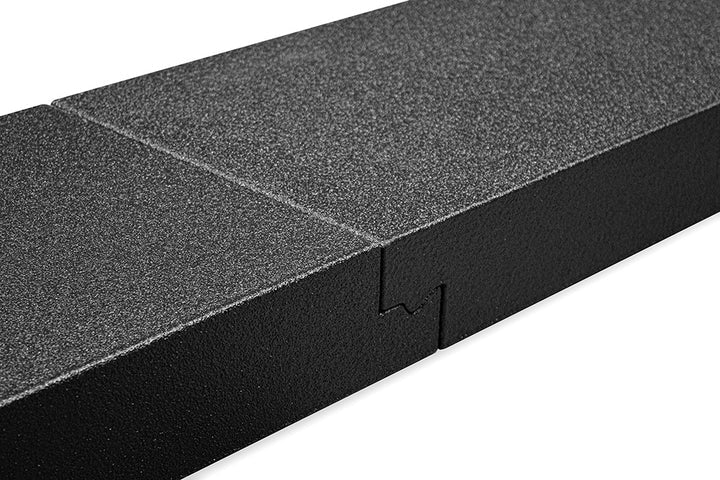

🔹 Multi-Piece Storage-Friendly Design – Eight-piece system can be broken down when not in use rather than occupying a permanent 185-inch footprint.

How to Use

Step 1: Assemble the ramp system according to MaxRamps' instructions for the vehicle's wheelbase.

Step 2: Confirm that all sections are aligned on a flat, stable surface.

Step 3: Verify vehicle weight and tire width against the system specifications.

Step 4: Slowly drive onto the ramps until all four tires are positioned correctly.

Step 5: Use the added 4 inches of clearance to position the intended automotive lift according to that lift manufacturer's procedures.

Pro Tip: This system is about lift access, not replacing the lift itself. Its job is to raise the body enough to get scissor platforms or lift arms underneath vehicles that normally sit too low.

Why We Love It

We think this solves a real professional-shop problem that improvised blocks and lumber never solve particularly well. A 4-degree approach is exceptionally shallow, and raising the entire car evenly gives you the clearance needed to use your actual shop lift instead of fighting the vehicle's ride height every time it comes through the door.

Compatible With / Works Best With

✅ Scissor & Mid-Rise Lifts – Creates additional underbody clearance for the lift structure.

✅ Two-Post Lifts – Helps lift arms reach low jacking points.

✅ Low, Exotic & Performance Cars – Designed specifically around vehicles with limited ground clearance.

Frequently Asked Questions

❓ How much does the system raise the vehicle?

💡 4 inches.

❓ What wheelbases will it accommodate?

💡 Approximately 80 to 115 inches.

❓ What is the maximum vehicle weight?

💡 7,000 lbs. overall.

❓ How many pieces are included?

💡 Eight pieces forming two complete drive-up ramp assemblies.

❓ Is this a replacement for an automotive lift?

💡 No. It provides the extra clearance needed to position and use a compatible lift beneath a low vehicle.

Technical Specifications

🆔 SKU: MRCL-4

📏 Overall Dimensions: 185" L x 14" W

⬆️ Lift Height: 4"

📐 Approach Angle: 4°

⚖️ Maximum Vehicle Weight: 7,000 lbs.

🛞 Maximum Tire Width: 12"

📏 Compatible Wheelbase: 80–115"

🏋️ Weight: 41 lbs. per Assembled Ramp

🧱 Construction: Solid-Core High-Density EPS with Polyurea Coating

📦 Included: 8 Pieces / 2 Complete Drive-Up Ramps

🇺🇸 Origin: Made in USA

Warranty Information

Backed by a 12-month limited manufacturer warranty covering defects in materials and workmanship under normal use.
