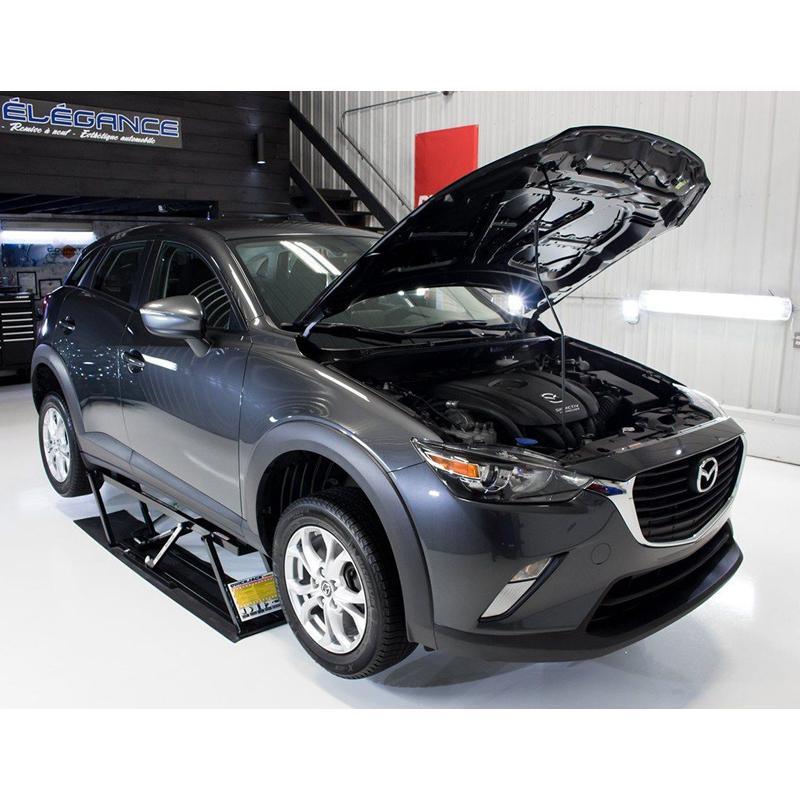

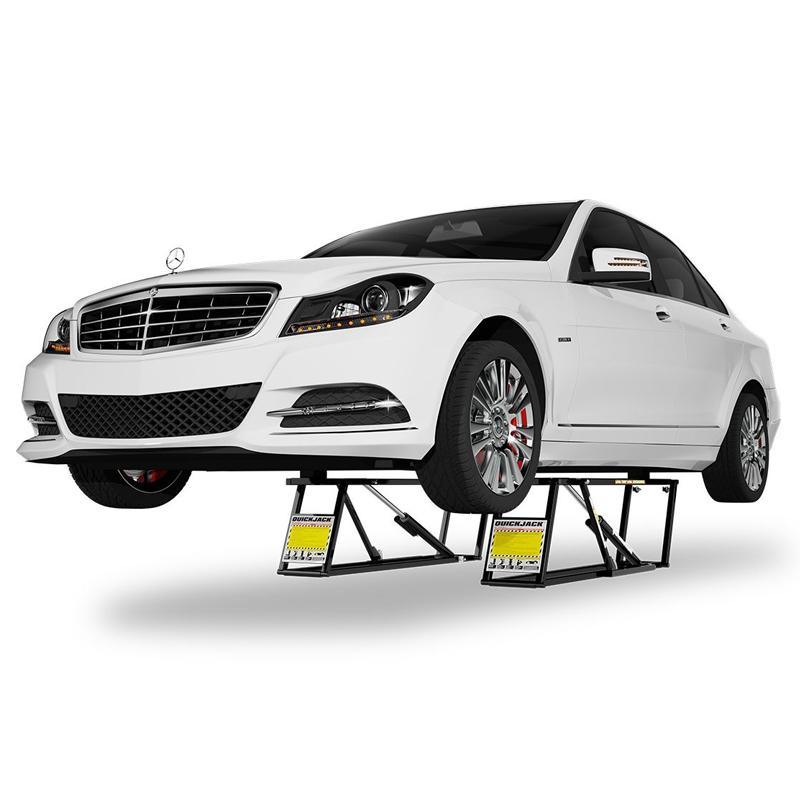

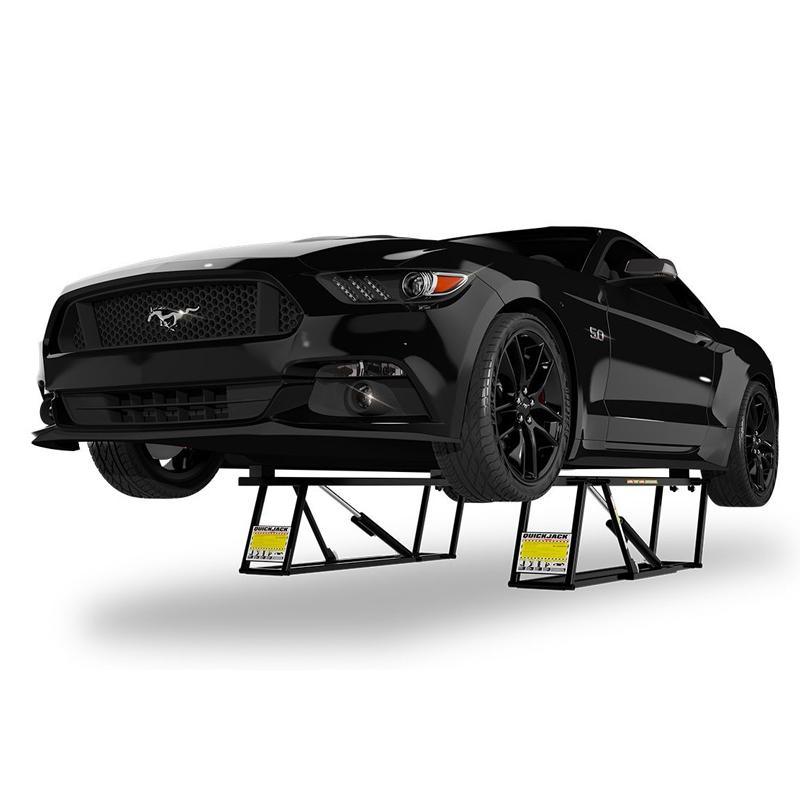

Meet your new best friend in the garage and at the track. The QuickJack 5000TL portable car lift system revolutionizes the way you work. No more fumbling with ramps and jacks. With QuickJack, you’re maintenance-ready in seconds flat.

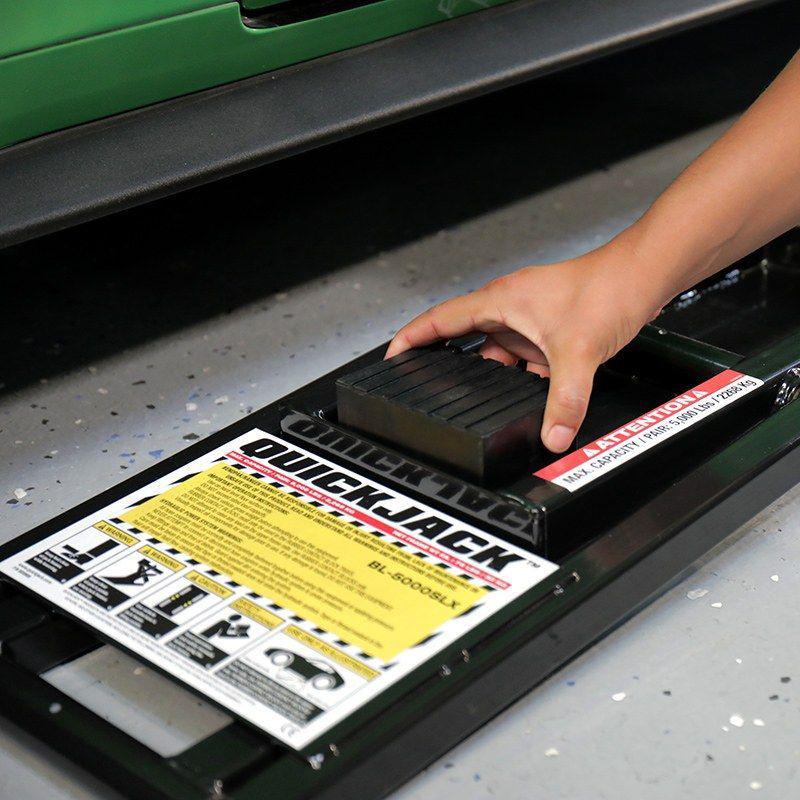

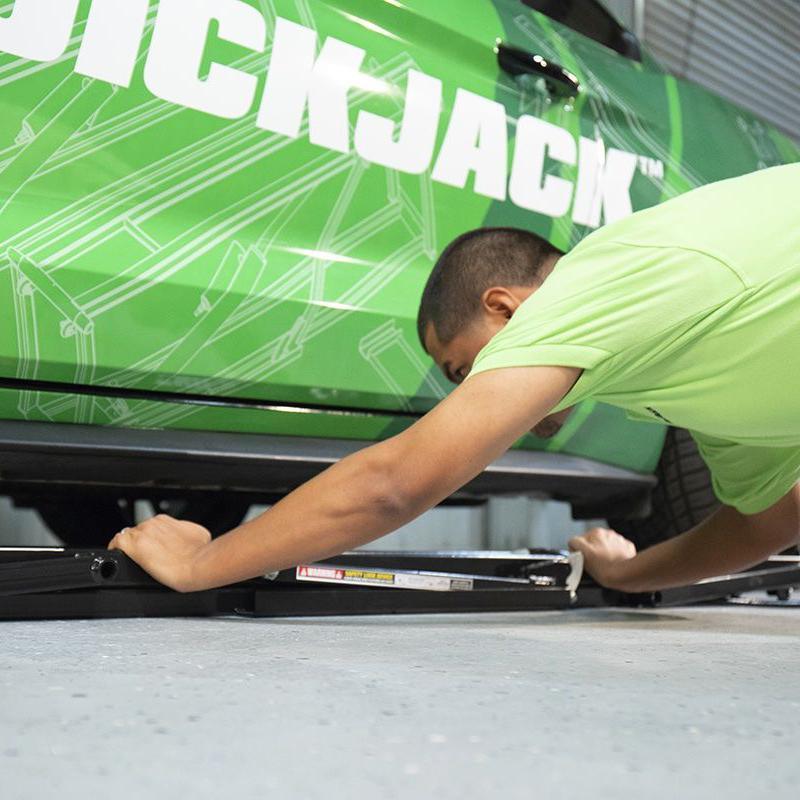

The 5,000-lb. capacity 5000TL car lift is made from the same materials found in a professional shop or garage. But, there’s one key difference. You can take the 5000TL with you almost anywhere. Toss it in a large trunk or backseat when you're on the move, and stow it away in a corner when you're done. After the initial one-time assembly, setting up your QuickJack is a snap. Just drop it on the floor, connect the power and position the rubber blocks underneath the lift points. That’s it! Press Up on the pendant control, and watch your car lift do its thing!

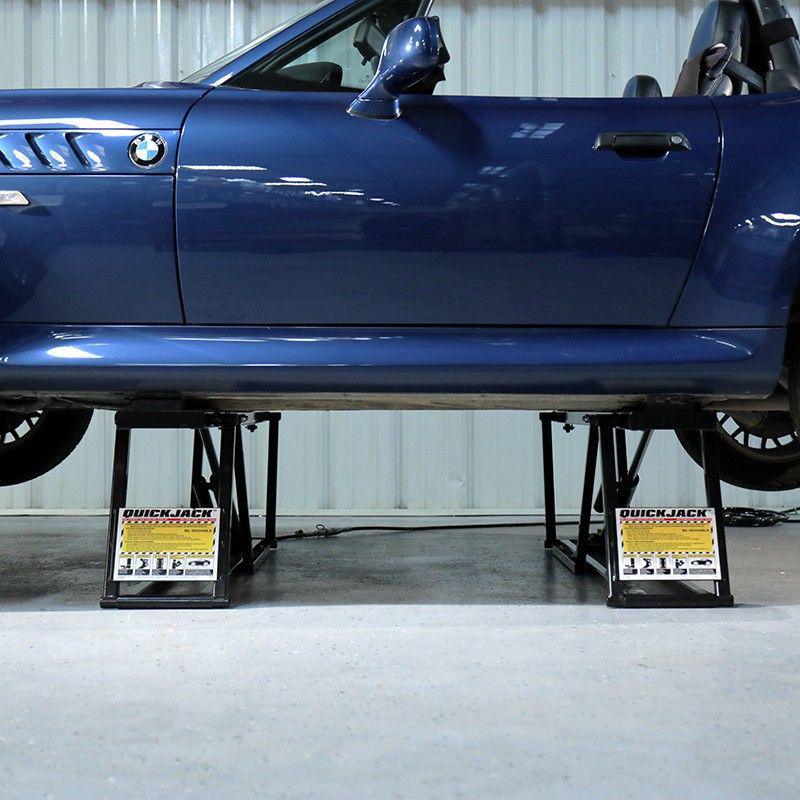

With a mere 3" collapsed height, the QuickJack is more versatile than other car lifts. Not to mention, auto-locking safety arms keep you safer than any jack or stand ever could. No cross members. No bolts in your concrete. The QuickJack 5000TL matches to almost any vehicle length and width in its weight class.
The new design better accommodates shorter wheelbases and/or smaller lift point spreads, making this our most clever and versatile design yet. For instance, we’ve eliminated a problem some Porsche owners experienced where the frames would make contact with the tires. Despite the new reduced frame length, the maximum lift point reach on the new 5000TL model is unchanged.
If you need to reach longer wheelbases than permitted by this car lift, chose the extended length 5000TLX
Automatic safety locks: Features dual-position automatic safety locks. As the frames rise, these locks glide securely into place. Disengage with a simple flip of the lock bar and your car lift is ready for a smooth descent.

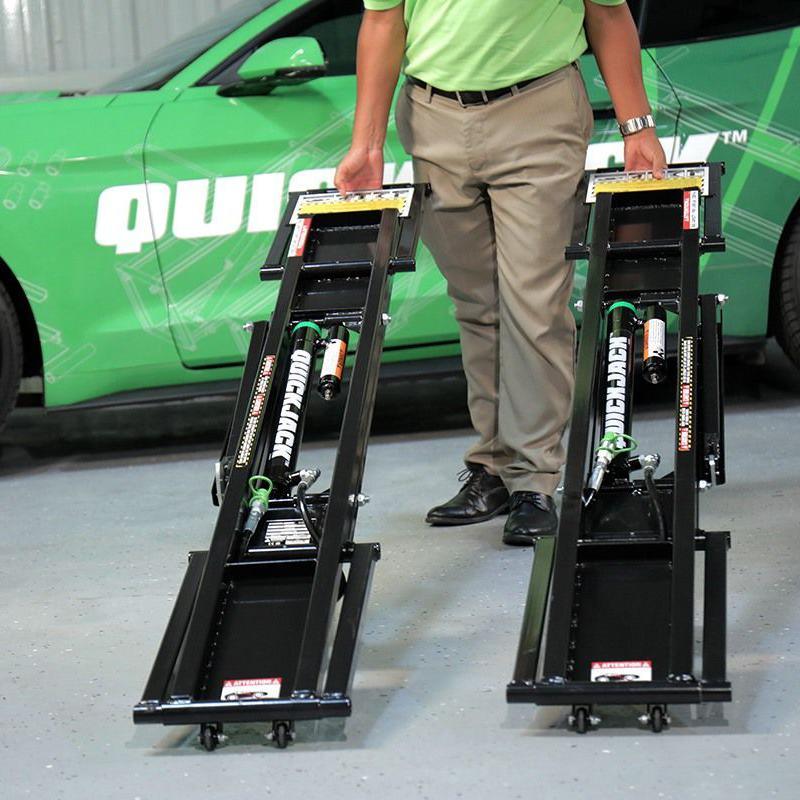

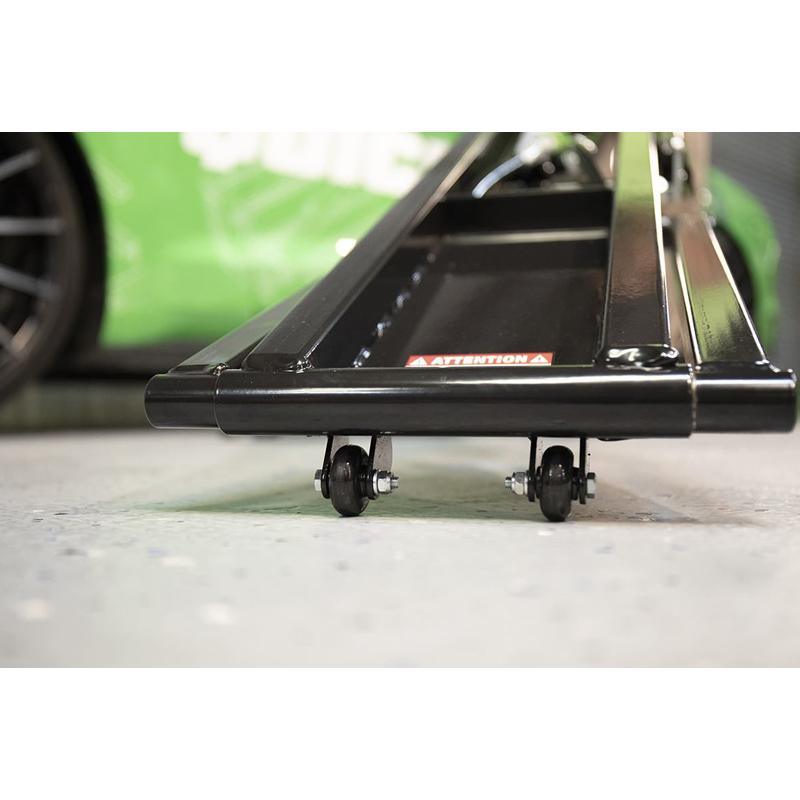

Reduced overall length: We shaved off 3" end-to-end on the BL-5000TL (70" overall). This makes QuickJack easier to stow in tight spaces and more able to service vehicles with narrow wheelbases. The maximum lift point reach is unaffected by the change. The BL-5000EXT measures 76.5", ensuring that you don't compromise on safety while lifting longer wheelbase cars.
Improved lift point access: By extending each rubber block tray an inch toward the center of the frame, the minimum lift point reach is now 2" less than it was before. This allows our portable car lift to accommodate smaller vehicles, like Porsches, with ease.

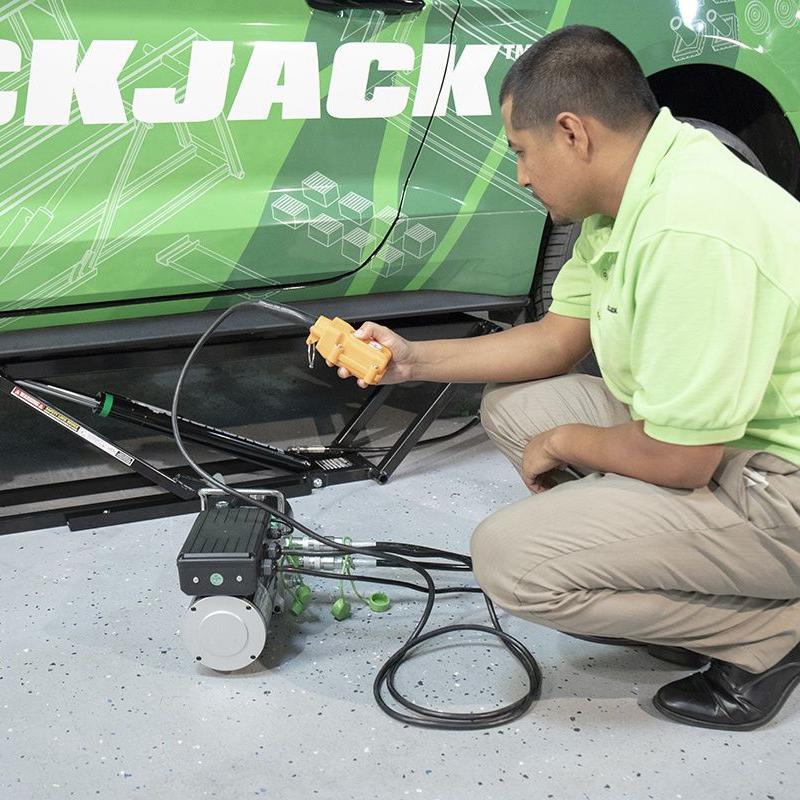

One-handed operation: By holding the pendant control in one hand, your other hand is totally free. No cranking or bending during "liftoff."
This product ships directly from QuickJack's facility in California. Car Supplies Warehouse does not keep physical stock of this item. Please allow a 2-3 week lead time for all QuickJack products.
|Lowered Height, Frame Only||3"||3"|
|Lowered Height, With 2" Block||3.5"||3.5"|
|Lifting Height, Frame Only||19"||19"|
|Lifting Height, With 2" Block||21"||21"|
|Lifting Height, With 3" Block||22"||22"|
|Lifting Height, Max Height||24"||24"|
|Lift Point Spread, Maximum||60"||66"|
|Lift Point Spread, Minimum||37"||43"|
|Frame Weight (each)||78lbs||81.5lbs|
|Time to Full Rise||30 seconds||30 seconds|
|Power Unit Weight||15lbs||15lbs|
|Total Shipping Weight||225lbs||220lbs|
WHATS IN THE BOX:
- BL-5000TL or BL-5000TLX Left Frame Assembly
- BL-5000TL or BL-5000TLX Right Frame Assembly

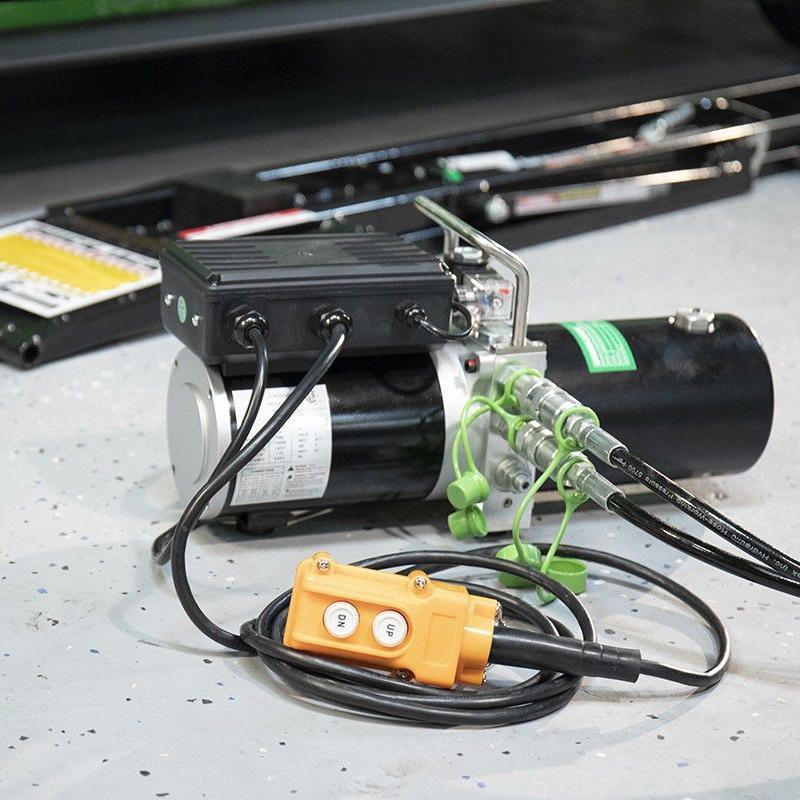

- Hydraulic Power Unit with Control
- 4 Medium Rubber Lift Blocks (2")
- 4 Tall Rubber Lift Blocks (3")
- 2 Short Hydraulic Hoses
- 2 Long Hydraulic Hoses
- 2 Frame positioning handles
- Fittings and thread tape
- instruction Manual
